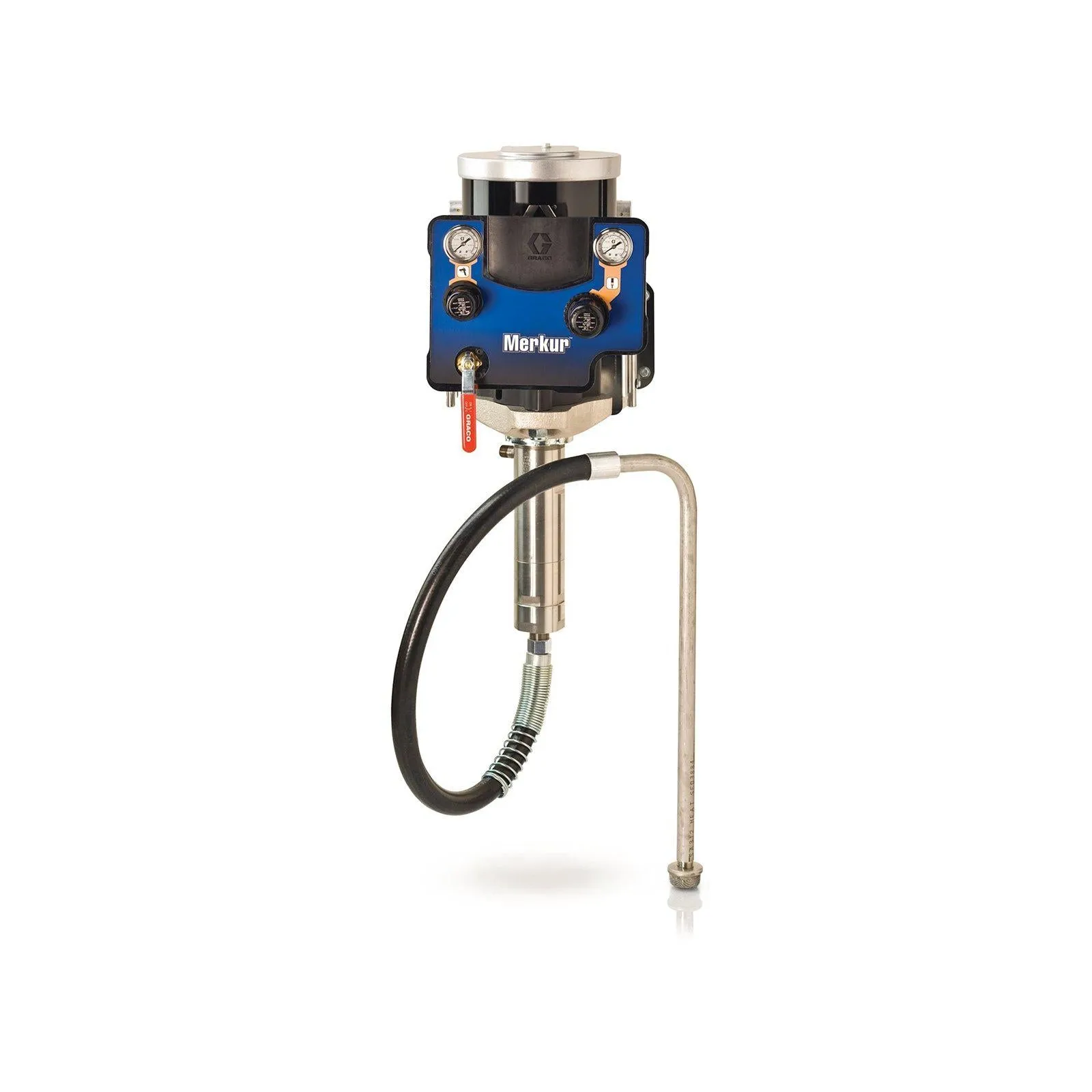

30:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Wall Mount, G40 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter, DataTrak
Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- Proven to outperform and outlast other pumps in their class
- Highest technology air motor on the market
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- External valve access allows for easy servicing and online replacement to minimize downtime
- Operator Control Panel located at operator height for easy setting and monitoring
- Throat seal and rod enclosure protects pumped material and wet cup from contamination but can be easily removed to monitor and service
| Convertible | Non-Convertible |
|---|---|
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |

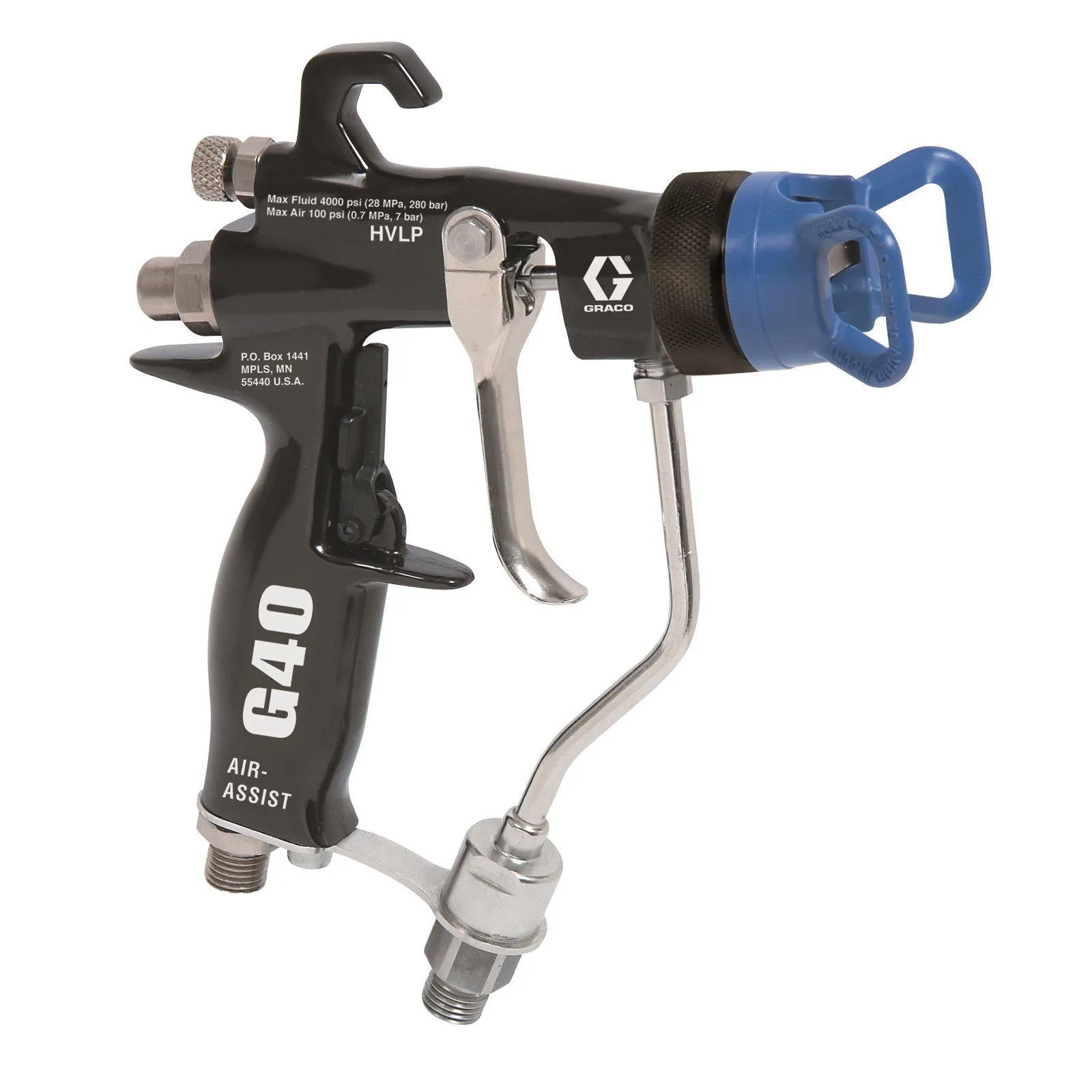

| Gun Model | G40 |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (in) | 0.1875 |
| Includes | Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter, DataTrak Monitor |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Wall Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE, ETL |
| Technology Type | Air-Assisted |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 44 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineered Plastic, Fluoroelastomer |
